NEW QUESTION 10
Complete the configuration of Dev-Edge to allow north-south routing connectivity for the new Dev-segment.
Workloads will have overlapping IP addressing with production workloads. The developers will RDP into a jump host server (Dev-Jumphost) on the Dev-Web segment. An RDP shortcut named To Dev-JumpHost.rdp has been created on the ControlCenter Desktop.
The following has been preconfigured on Dev-Edge:
The uplink interface on the Dev-Edge has been pre-configured to communicate the upstream Gateways and attached to Dev-to-PGs-Transit.
Dev-DLR-NEW and Dev-Edge interfaces have been preconfigured to communicate with each other.
ECMP has been disabled.
Requirements:
vCenter: vcsa-01a.corp.local
Credentials: [email protected] / VMware1!
Dev-Jumphost information:
Credentials: administrator / VMware1!
Internal IP of Dev-Jumphost: 172.16.10.100
External IP of Dev-Jumphost: 192.168.5.100
Connection Information:
Dev-Edge-Uplink IP: 192.168.5.3/24
Dev-Edge-Internal IP : 192.168.6.6/30
Preimeter-Gateway-01-Internal IP: 192.168.5.1/24
Preimeter-Gateway-02-Internal IP: 192.168.5.2/24
Logical switch: Dev-to-PGs-Transit
ECMP: Enabled.
BGP AS: 65001
Credentials for all Edge Devices: admin / VMware1!VMware1!
The networking team requires BGP as a routing protocol with an AS of 65001 for North-bound access for the Dev-environment.
Use the fewest number of static routes and utilize network prefixes to ensure accessibility to the Dev-Web-Tier-01-NEW within the Dev-environment.
Ensure Dev-Jumphost is on Dev-Web-Tier-01-NEW.
Ensure the ability to RDP into the Dev-Jumphost server from the production network (ControlCenter).
HOL LAB for Practice:
module, it will be use full for other question like 20 and 22
See the explanation part for complete solution.
Answer:
Explanation:
SOLUTION:
Static Routes on Dev-Edge:
Network:172.16.0.0/16
Next Hop:192.168.6.5
Interface:Dev-Transit
Uplink
192.168.5.100
Tcp
3389
172.16.10.100
3389
(1) Go to Vcenter-a. select network & Security. select NsX Edge.
(2) check the PGW01 configuration if everything is ok no need to do any changes specially ip address and routing. if not than select PGW01. select Manage. select routing select global configuration and enable routing. click publish changes.
be sure ECMP is enabled.

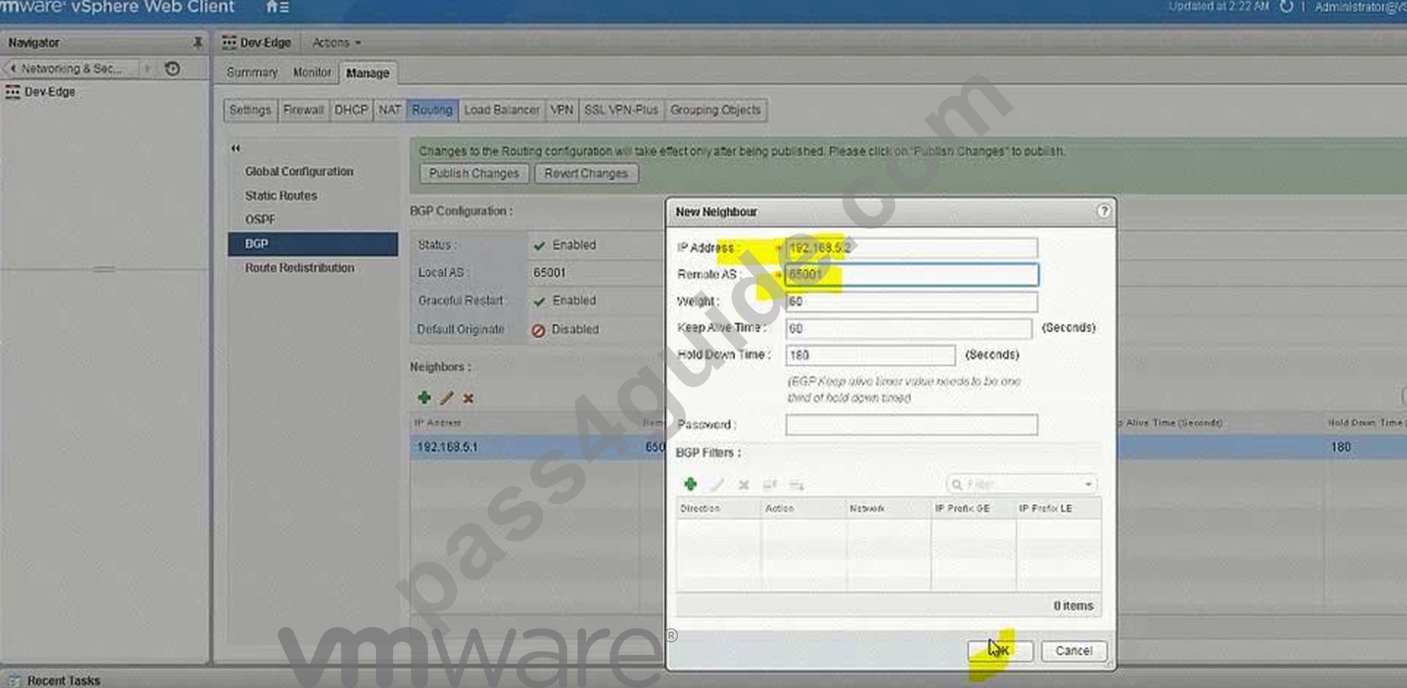

select BGP Configuration. click edit. select enable BGP, select Enable Graceful restart (select enable Default originate). enter AS 65001 click ok click publish changes
SSH to both Perimeter Routers and verify BGP neighborship.
Username: admin
Password: VMware1!VMware1!
Add jumphost VM to Dev-Web-Tier-01-NEW Logical Switch
NOTE:
192.168.5.100 interface is created in the next task only. So after testing the next task output, you should be able to get the RDP login.
NEW QUESTION 11
The security team has requested that [email protected] have the ability to fully manage NSX Manager (192.168.210.15) for Site B.
Requirements:
vCenter: vcsa-01b.corp.local
Credentials: [email protected] / VMware1!
Ensure [email protected] has the ability to fully manage NSX Manager in SiteB.
NOTE:
You may have to log out of the web client and back in for 192.168.210.15 to show in web client.
HOL LAB for Practice:
See the explanation part for complete solution.
Answer:
Explanation:
SOLUTION:
NSX Manager in SiteB
[email protected]

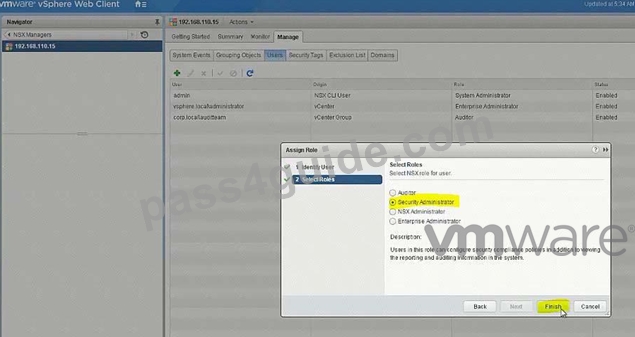

go to Nsx manager - b. select Manage Vcenter registration. check if lookup service is configured if not configured it will the details.
lookup service ip = Nsx Manager - a IP Address
Lookup service port = 7444
Lookup service= https://192.168.110.15:7444/lookupservice/sdk
SSO administrator = [email protected]
password = VMware1!
click on ok. click on yes.
NOTE: it will show u connected. if not connected. logout and login again
NEW QUESTION 12
Build a multi-tier network capable of supporting application virtual machines deployed across multiple vCenter instances.
Requirements:
vCenter: vcsa-01a.corp.local
Credentials: [email protected] / VMware1!
Resource Pools: Management and Edge Cluster 1A
The underlying physical network does not support multicast.
All new items created must have a prefix of "U" followed by their function name and a suffix of "New".
i.e. U-App-Tier-NEW.
Create a LS for HA management interface calle U-HA-VXLAN=NEW but do not enable HA on any of the edge devices deployed.
Deploy logical switches using separate subnets for the three tier application shared by both NSX Manager instances.
Deploy the required east-west routing component used across multiple vCenter instances for the multi-tier network.
Utilize a default gateway up to the Perimeter-Gateway02 (tenant router) from the east/west router.
Utilize a static route from the tenant router to reach the three tiers of the application.
Subnets for the tiers:
172.7.10.0/24 for the Web Tier.
172.17.20.1/24 for the App Tier.
172.17.30.0/24 for the Database Teir.
Use the first available IP address for the router on each of the tiers.
Subnet for the Transit VXLAN uplink from the application tier routing to the tenant router.
192.168.190.0/29
Uplink IP address of the application tier should be the first available IP address.
Downlink from the tenant router will use the second available IP addresses.
The password for new edge device(s) must be VMware1!VMware1!
Add all virtual machines with a prefix "universal-" to their respective segments.
Ensure all LIFs are reachable from ControlCenter.
HOL LAB for Practice:
See the explanation part for complete solution.
Answer:
Explanation:
SOLUTION:
universal transport zone
logical switches
U-HA-VXLAN-NEW
U-Transit-NEW
U-Web-Tier-NEW
U-App-Tier-New
U-DB-Tier-New
New DLR U-DLR-NEW
HA Interface - U-HA-VXLAN-NEW
Interface below
- U-Transit-NEW uplink 192.168.190.1
- U-Web-Tier-NEW internal 172.17.10.1
- U-App-Tier-NEW internal 172.17.20.1
- U-Db-Tier-NEW internal 172.17.30.1
Gateway
-U-Transit-NEW
Ip 192.168.190.2
PGW02 vnic4 U-Transit-NEW 192.168.190.2
Create 5 logical switches
U-Transit-NEW
U-Web-Tier-NEW
U-App-Tier-NEW
U-DB-Tier-NEW
Add VMs to relevant newly created Logical Switches.
No need
Create new Universal Logical (Distributed) Router:
U-DLR-NEW
U-Uplink-NEW(U-Transit-NEW)
Select U-Transit-NEW logical swicth here
Perimeter-Gateway-02

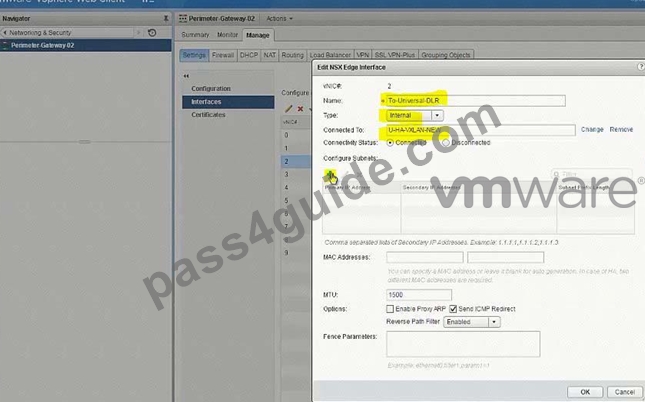

To-Universal-DLR
Select U-Transit-NEW
172.17.0.0/16
192.168.190.1
To-Universal-DLR
NEW QUESTION 13
In the previous scenario, vCenter vcsa-b.corp.local was configured for NSX. Now the hosts must be prepared for NSX and the initial VXLAN configuration should be completed.
Requirements:
vCenter: vcsa-01b.corp.local
Credentials: [email protected] / VMware1!
Cluster: Compute Cluster 1B
ESXi Hosts: esx-01b.corp.local, esx-02b.corp.local
VTEP Information:
VMKNic Teaming Policy: Fail Over
VLAN: 0
MTU: 1600
IP Pools for VTEP:
* Name: Compute_1B_VTEP_Pool-New
* Gateway: 192.168.230.1
* Prefix Length: 24
* Static IP Pool: 192.168.230.51 - 192.168.230.60
* Segment ID Pool: 6001-7000 - HOL 1903-01 Page 26-36
* VXLAN Span: Compute Cluster 1B - HOL 1903-01 Page 26-36
* Transport Zone: Local-Transport-Zone-B-New - HOL 1903-01 Page 26-36
* Host must be prepared for NSX
* Use provided information to complete the initial VXLAN configuration.
* The underlying physical network does not support multicast.
* Ensure that requirements are met:
* Create the IP Pool as given:
* Do the Host preparation.
* Create a Local Transport Zone as given. - HOL 1903-01 Page 26-36
* Create the segment ID as given. - HOL 1903-01 Page 26-36
HOL LAB for Practice:
http://docs.hol.vmware.com/hol-isim/HOL-2019/hol-1903-01-nsxinstall-p2.htm and LAB - HOL 1903-01 Page 26-36 See the explanation part for complete solution.
Answer:
Explanation:
SOLUTION:
HOL 1903-01 Page 26-36
Login to vCenter b Web Client and from Networking and Security -> Installation -> select to SiteB NSX Manager -> Host Preparation and prepare the hosts as below:
Add Static Pool as per give details in the QUESTION
NEW QUESTION 14
Routing through TS-Edge-01 is not working. The service provider (SP) has confirmed their configuration is correct.
Requirements:
vCenter: vcsa01a.corp.local
Credential: [email protected] / VMware1!
Edge: TS-Edge-01
Credential: admin / VMware1!VMware1!
Problem Edge: TS-Edge01
Local IP Address: 192.168.100.202
SP provided configuration:
Area ID: 10
Type: Normal
Authentication: None
Ensure the OSPF session is established.
Ensure all learned OSPF routes appear.
Copy OSPF routing table information and output to file on ControlCenter Desktop named TS-Edge-01_OSPF.txt NOTE:
Do not use static route or configure Default Gateway on any Edge.
HOL LAB for Practice:
See the explanation part for complete solution.
Answer:
Explanation:
SOLUTION:
(1) select Home. select Network & Security. select NsX Edge. select Nsx Manager-a.
select TS-EDGE-01. select manage tab and select settings.
select interface. check ip address and mask of the vnic.
open putty. enter ip address 192.168.100.202.
enter command show ip route ospf. copy the ouput and save in a text file name TS-Edge-01.txt.
Copy and save OSPF route table in notepad.
NEW QUESTION 15
The security team has submitted two requests to change or limit access in NSX for Site A's vCenter groups.
Requirements:
NSX Manager: nsxmgr-01a.corp.local
vCenter: vcsa-01a.corp.local
Credentials: [email protected] / VMware1!
Grant all members of vCenter group AuditTeam the minimal access necessary to view NSX Data Security policy configurations for all objects in Site A.
Grant all members of vCenter group ScanTeam the minimal access necessary to enable them to start and stop data security scans in Site A.
Ensure that the principles of least privilege are adhered to.
NOTE:
The Active Directory groups associated with the vCenter groups has already been preconfigured.
HOL LAB for Practice:
See the explanation part for complete solution.
Answer:
Explanation:
SOLUTION:
select Home. select administrator. select domain vsphere.local. select groups.
click + sign. enter group name AuditTeam click ok. do same for ScanTeam.
[email protected]
[email protected]
select datacenter A.
select manage select permission click on + Sign.
select Assign role read only. select all privileges click on Add
select AuditTeam and select ScanTeam. check propagate to childern. and click ok
NEW QUESTION 16
Configure a solution that extends an IP subnet between two data centers. The solution must ensure secure communication between two data centers. A standalone Edge Appliance has already been deployed and preconfigured in Site-B on the Compute Cluster.
Requirements:
vCenter: vcsa-01a.corp.local
Credentials: [email protected] / VMware1!
HQ Site Information:
Edge: Preimeter-Gateway-01
Logical Segment: Extend-LS-01
Connected to: vds-mgt-a_Trunk_Network
VPN Server settings: 192.168.100.3
Use the system generated certificate.
Preconfigured Standalone Edge Appliance: NSX l2vpn
Edge: 192.168.200.5
L2VPN Server Information:
Name: Peer-Site-NEW
Trunk ID = 10
User ID = peeruser1
Password = VMware1!
Encryption = AES256-SHA
The solution must ensure secure communication between the data centers.
NOTE:
No virtual machines are attached to the Logical switch Application-Tier-01, so there is no need to test communication across the tunnel.
Ensure that L2VPN server statistics shows Tunnel status of UP.
HOL LAB for Practice:
L2VPN and other questions 7, 8, 9
See the explanation part for complete solution.
Answer:
Explanation:
SOLUTION:
Add new Logical Switch: "Application-Tier-01"
NSX Edges -> Perimeter-Gateway-01 -> Manage -> Settings -> Interfaces -> edit vNIC4
Name: Extend-LS-01
Type: Trunk
Connected To:
Distributed Portgroup: vds-mgmt-a_trunknetwork
Add Sub Interface:
L2VPN Settings:
( select VPN under manage and enable L2VPN. click publish changes..
Then below
In actual exam, encryption is = AES256-SHA
(8) go to Vcenter b select datacenter - b. select Nsxl2vpn Edge under datacenter B click on Action select Power and click on Power on.
(9) check after few minutes the VPN Status by clicking Show L2VPN Statistic.
be sure its up. select PGW01 select VPN under Manage select L2VPN enable and click on publish changes.
NEW QUESTION 17
The troubleshooting NSX deployment is growing and running out of compute capacity. An additional ESXi host is being added for VXLAN.
Host preparation has failed on esx-05a.corp.local on several attempts and the Compute Cluster 2A was left in an error state, determine and resolve the issue.
Requirements:
vCenter: vcsa-01a.corp.local
Credentials: [email protected] / VMware1!
Cluster: Compute Cluster 2A
IP Pool: Compute-2A
Transport Zone: Local-Transport-Zone-A
Esx-05a.corp.local IP information:
IP: 192.168.110.58
Netmask: 255.255.255.0
Gateway: 192.168.110.1
DNS: 192.168.110.10
1-Resolve deployment issue.
2-Prepare esx-05-a.corp.local for NSX in Compute Cluster 2A.
3-Ensure once the issue is resolved with the Compute Cluster 2A cluster, that it is connected to Local-Transport-Zone-A.
HOL LAB for Practice:
No Lab Module available
See the explanation part for complete solution.
Answer:
Explanation:
SOLUTION:
Follow the steps as:
NEW QUESTION 18
You have been tasked with creating a new Layer 2 network toplogy for test and development systems which mirrors the existing production environment.
Requirements:
vCenter: vcsa-01a.corp.local
Credentials: [email protected] / VMware1!
Transport Zone: Local-Transport-Zone-A
New Dev Segments:
Dev-Web-Tier-01-NEW
Dev-App-Tier-01-NEW
Dev-DB-Tier-01-NEW
Create Layer 2 network topology for the test and development systems.
NOTE:
The routing components will be addressed in subsequent scenarios.
HOL LAB for Practice:
See the explanation part for complete solution.
Answer:
Explanation:
SOLUTION:
Create 3 Logical Switches on NSX Manager A (192.168.110.15)
HOL 1903-01 Page 37-38
Dev-Web-Tier-01-NEW
Dev-App-Tier-01-NEW
Dev-DB-Tier-01-NEW
(3) Dont Forget to create a Dev-Transit Switch if its not there.
NEW QUESTION 19
......
Master 2021 Latest The Questions VCAP-NV Deploy 2020 and Pass 3V0-643 Real Exam!: https://www.pass4guide.com/3V0-643-exam-guide-torrent.html
